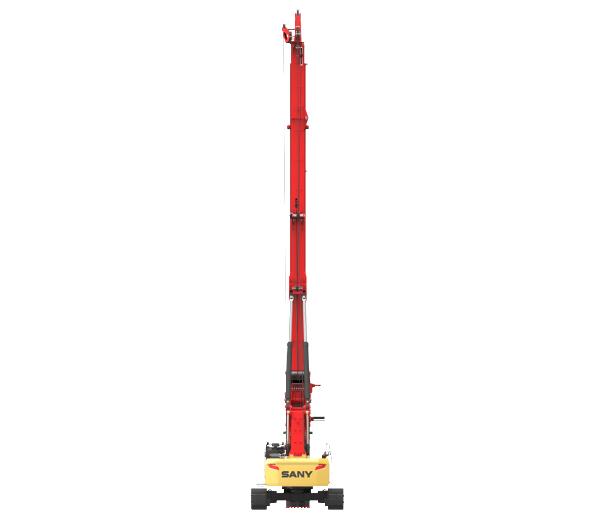

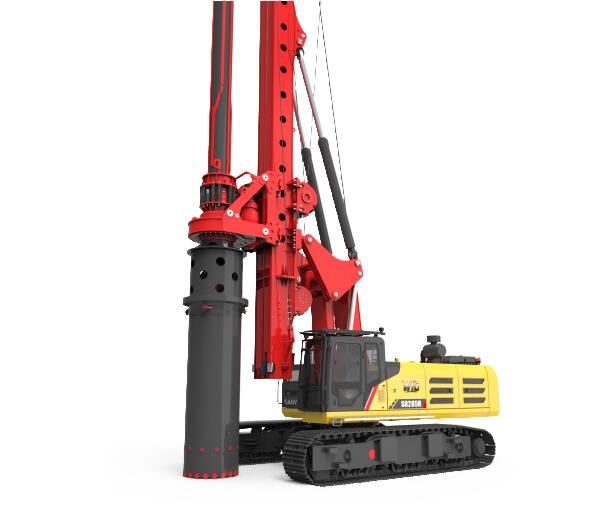

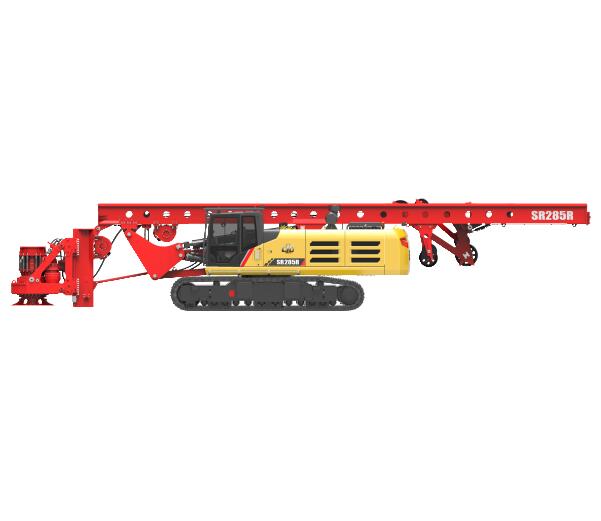

SR285RW10
Specifications
| Pile | Max. pile diameter(mm) | 2200/1900 |
| suitable pile diameter(m) | 1.0-1.8 | |
| Max. pile depth(m) | 94/61 | |
| Rotary drive | Max. output torque(kN•m) | 285 |
| Speed of rotation(rpm) | 5~24 | |
| Crowd system | Crowd force(kN) | 260 |
| Line pull(kN) | 335 | |
| Stroke(mm) | 17100 | |
| Main winch | Line pull(kN) | 330 |
| Rope diameter(mm) | 36 | |
| Max. line speed(m/min) | 72 | |
| Auxiliary winch | Line pull(kN) | 90 |
| Rope diameter(mm) | 20 | |
| Max. line speed(m/min) | 70 | |
| Mast inclination | Forward/backward(degree) | 5/90 |
| Lateral(degree) | ±4 | |
| Main chassis | Base engine | ISUZU 6WG1 |
| Engine power(kW/rpm) | 300/1800 | |
| Emission regulation | COMⅢ/R96 | |
| Engine displacement(L) | 15.68 | |
| Chassis length(mm) | 7475 | |
| Extended width(mm) | 4760 | |
| Track shoe width(mm) | 800 | |
| Swing radius(mm) | 4530 | |
| Overall machine | Overall height(mm) | 25410 |
| Operation weight(t) | 105 | |
| Transport width(mm) | 3475 | |
| Transport height(mm) | 3610 |
