SR405R

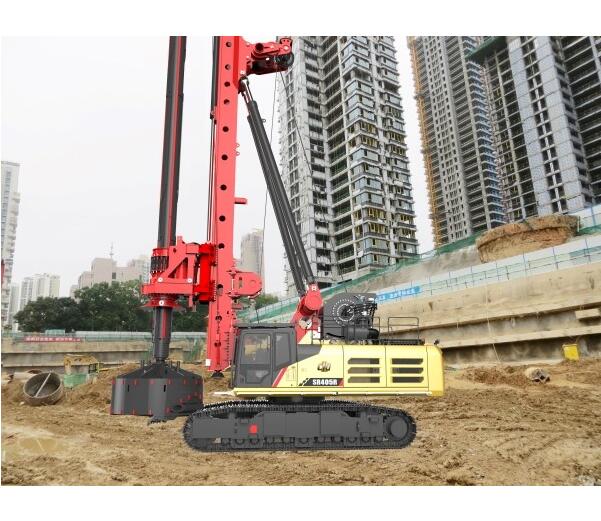

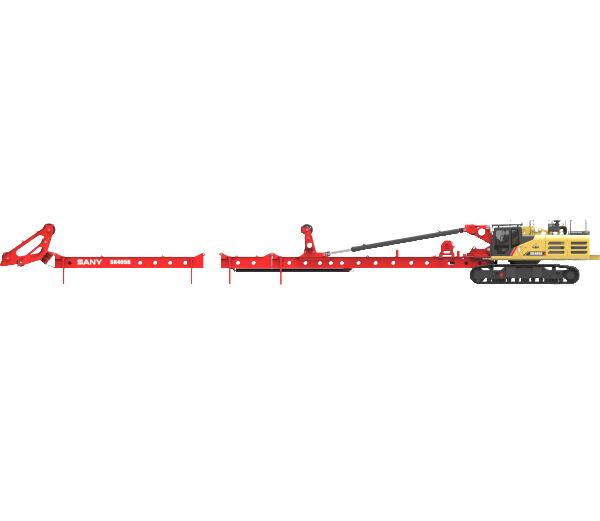

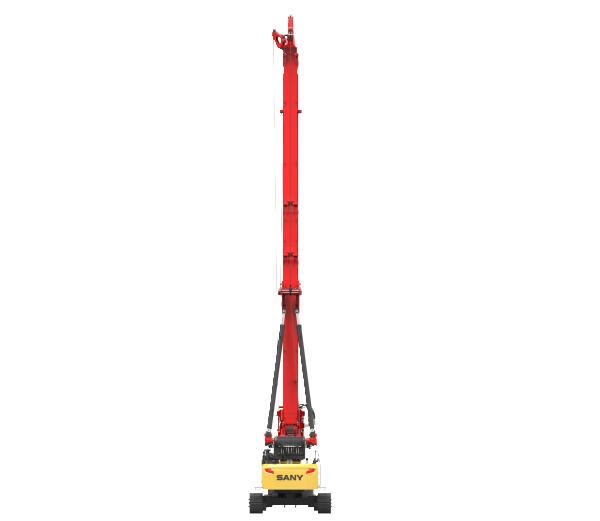

SR405RC10 rotary drilling rig is suitable for hard rock drilling with double triangle structure.
Specifications
| Pile | Max. pile diameter(mm) | 2800 |
| suitable pile diameter(m) | 1.5-2.2 | |
| Max. pile depth(m) | 106/69 | |
| Rotary drive | Max. output torque(kN•m) | 405 |
| Speed of rotation(rpm) | 4~23 | |
| Crowd system | Crowd force(kN) | 320 |
| Line pull(kN) | 335 | |
| Stroke(mm) | 6000 | |
| Main winch | Line pull(kN) | 400 |
| Rope diameter(mm) | 36 | |
| Max. line speed(m/min) | 75 | |
| Auxiliary winch | Line pull(kN) | 90 |
| Rope diameter(mm) | 20 | |
| Max. line speed(m/min) | 70 | |
| Mast inclination | Forward/backward(degree) | 90/15 |
| Lateral(degree) | ±3 | |
| Main chassis | Base engine | ISUZU 6WG1 |
| Engine power(kW/rpm) | 377/1800 | |
| Emission regulation | COMⅢ | |
| Engine displacement(L) | 15.68 | |
| Chassis length(mm) | 7825 | |
| Extended width(mm) | 4860 | |
| Track shoe width(mm) | 800 | |
| Swing radius(mm) | 4700 | |
| Overall machine | Overall height(mm) | 27420 |
| Operation weight(t) | 122 | |
| Transport width(mm) | 3550 | |
| Transport height(mm) | 3745 |
Benefits & Features
High drilling capacity
15-20m friction Kelly, 15-20m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 405kN.m, the maximum pile depth is 112m down, maximum pile diameter under winch crowd is 2500mm, 2800mm under cylinder crowd.
Isuzu engine with rated power of 377kW@1800rpm provides strong power to the machine, improving the drilling capacity.
Main winch with dual reducer and dual motor delivers faster line speed of 50m/min, bigger lifting power with 437kN line pull, single layer rolling is optional.
Safe and reliable
The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.
Anti-shock heavy duty hydraulic system tailor-made with renowned brands and heavy extended chassis with low gravity ensure efficient, safe and stable operation.
Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.
Easy to operate & maintain
Auto center lubrication system is equipped to facilitate the secure and efficient lubrication of the drilling rig.
Optimized layout, larger spaces for pumps and valves is for easy maintenance during work.
Spacious cab with panorama sunroof, SANY-ADMS intelligent operation system designed to give the operator a comfortable environment and wide visibility.
