| Technical data | ||
| Overall length | 9,680 mm | |
| Overall width | 2,980 mm | |
| Overall height(In transportation state) | 3,440 mm | |
| Upper width | 2,875 mm | |
| Overall height(Cab top) | 3,075 mm | |
| Track shoe | 600 mm | |
| Track gauge | 2,380 mm | |
| Minimum ground clearance | 440 mm | |
| Tail swing radius | 2,900 mm | |
| Ground contact length of the track | 3,445 mm | |
| Track shoe length | 4,250 mm | |
| Boom length | 5,700 mm | |
| Bucket arm length | 2,900 mm | |
| Bucket capacity | 0.93 m³ | |
| WEIGHT | ||
| Total weight | 21,900 kg | |
| WORKING RANGE | ||
| Max. digging height | 9,600 mm | |
| Max. unloading height | 6,730 mm | |
| Max. digging depth | 6,600 mm | |
| Max. digging distance | 10,280 mm | |
| Min. slewing radius | 3,730 mm | |
| Max. height at min. slewing radius | 7,680 mm | |
| ENGINE | ||
| Model | MITSUBISHI 4M50 | |
| Rated power | 118 kW | |
| Max. torque | 580 Nm | |
| Displacement | 4.9 l | |
| OUTPUT | ||
| Slewing speed | 10.7 | |
| Max. ground speeds | fast 6.0 km/h slow 3.5 km/h | |
| Slewing torque | 208 kN | |
| Climbing ability | 35° | |
| ISO bucket breakaway force | 138 kN | |
| ISO arm tear-out force | 102 kN | |
| SERVICE REFILL CAPACITIES | ||
| Fuel tank | 390 l | |
| Engine coolant | 25 l | |
| Engine oil | 22 l | |
| Final drive (per side) | 5 l | |
| Hydraulic oil tank | 239 l | |
High Efficiency & Low Consumption
Working Efficiency Up by 8%
Innovative controller with faster consumption and more accuracy reduces the response time of hydraulic elements, lowers the internal power loss of the system and increases the operating output power.
Fuel Consumption Down by 10%
The positive flow controlled by hydraulic system considerably reduces fuel consumption. Advanced computer dynamic control technology provides a real-time match between engine power and main pump power. Four power modes maximize fuel economy.
Digging Force Up by 9.5%
Enhanced work equipment can bear high pressure of quality hydraulic elements and circuits, and strengthen the digging force.
High Reliability
Powerful Customized Machine
The Mitsubishi engine with rate power of 118/2050 kW/rpm, 6-cylinder, 4-stroke direct-injection turbocharger, and 5.86L displacement is customized for SANY excavators, meeting your expectation on engine stability.
Strong Structural Components
Reinforced X-force modeled with digital tools, and plated welded on the two main beam of swing platform considerably improves the bending resistance performance. Track rollers, carrier rollers and idlers use seal in lubrication that enhances service life. The tri-grouser track shoe rolled with high-strength alloy provides favorable contact, stability and durability.
Safety and Comfort
Falling Object Protection Structure
The top plate of cab is punch-formed with thick high-strength steel sheet integrated with reinforced ribs which maximize the safety of operator.
Large Rear View Mirror & Alternate Exit

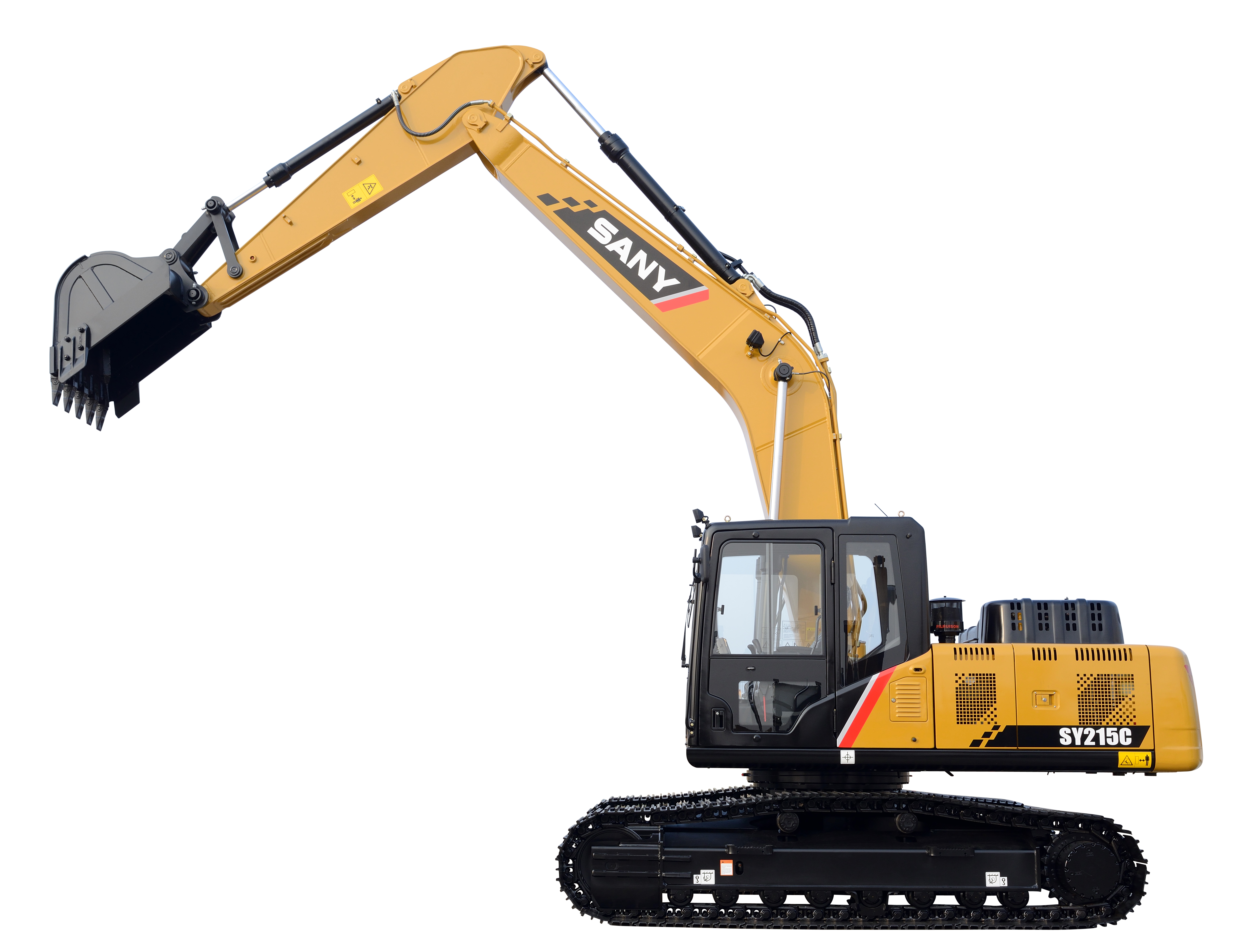

Rear view mirror of SY215C medium excavator is mounted on both sides of the cab which can observe the situation behind the excavator without looking back.
Large Low Noise Cab
The control provide you with the best driving experience for levers and joysticks designed and arranged according to ergonomic, adjustable seat with suspension, noise reduction design and low-noise engine.
Easy and Fast Maintenance
Serially-arranged Cooling Units
Coolant radiator, oil radiator, intercooler and condenser are placed side by side for easy cleaning and maintenance.
Bottom Drain Plug
The radiator, fuel tank, hydraulic oil tank and oil pan are equipped with screw plugs at the bottom, which is convenient for discharging substances and waste liquid out in changing and cleaning oil.
Large-capacity Fuel Tank with Anti-rust Treatment
Interior of the fuel tank has been treated well against rusting. No rusting will occur even if the tank is soaked in oil containing water and phosphoric acid and other chemicals for a long period of time.
