| Technical data | |
| Overall length | 10290 mm |
| Overall width | 3190 mm |
| Overall height | 3255 mm |
| Upper width | 3045mm |
| Track length | 4445 mm |
| Track gauge | 2590 mm |
| Tail swing radius | 3105 mm |
| Min.Ground Clearance | 470 mm |
| Track shoe width | 600 mm |
| Boom length | 5900 mm |
| Bucket arm length | 2900 mm |
| Bucket capacity | 1.3 m³ |
| WEIGHT | |
| Total weight | 25500 kg |
| WORKING RANGE | |
| Max. digging height | 9745 mm |
| Max. digging depth | 6705 mm |
| Max. digging distance | 10225 mm |
| Min. slewing radius | 3800 mm |
| Max. height at min. slewing radius | 3915 mm |
| ENGINE | |
| Model | Mitsubishi D06FRC |
| Rated power | 147 kW/2100rpm |
| Travel speed | 3.4\5.4 km/h |
| OUTPUT | |
| Slewing speed | 10.6rpm |
| Fuel tank | 475L |
| Engine coolant | 31L |
| Engine oil | 29L |
| Hydraulic oil tank | 239L |

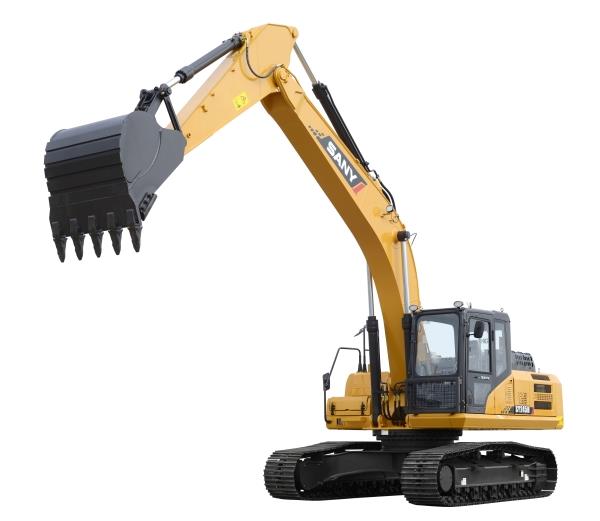

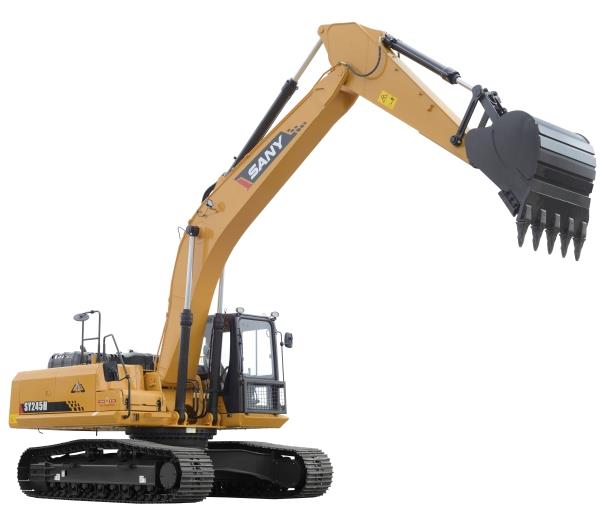

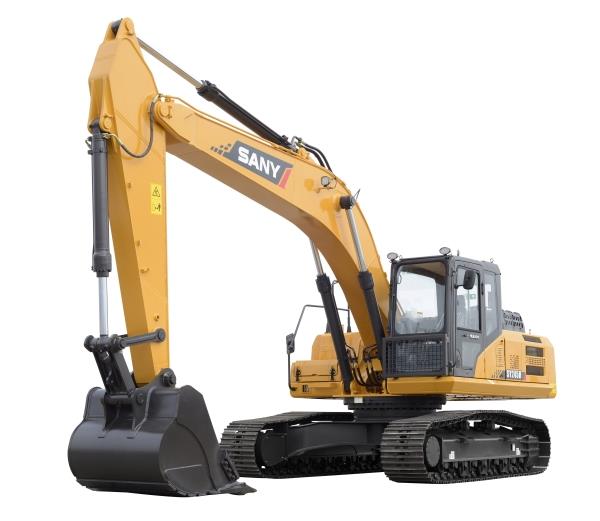

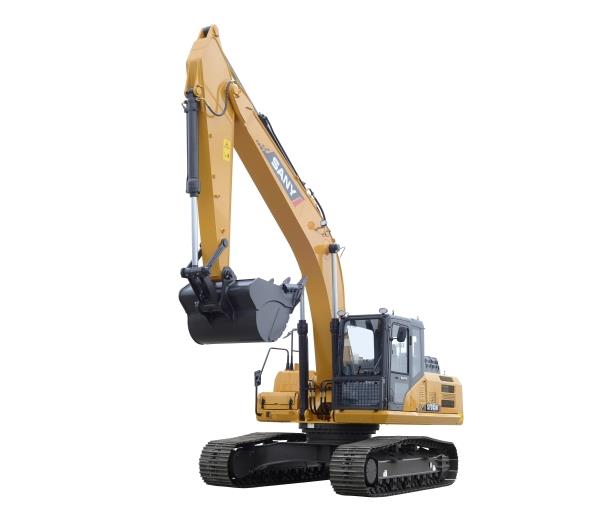

High Output, Best Choice for Mining Excavator
Based on the SY245H model, the work equipment, undercarriage and frame have been reinforced to meet the rigorous requirements for mining applications.
Adopting 30T structure frame, the overall contour is concise and tough, fully shows the fortitude image of mining excavator.
Excellent Performance
With the AOCT (Auto Optimization Control Technology), the main pump can perfectly match the engine output power. This improves the working efficiency by 5%.
Through optimizing match, the utilization is improved, its stability is kept, then its digging efficiency is much better than others in its tonnage. This machine has strong power and high digging efficiency.
Superior Reliability
After 3000 hours of mining operations, the reliability is considered leading level.
According to special work condition of mine, key structure parts are used high strength steel. We have also designed and developed impact resistance structure. Adopting advanced manufacture and welding technology, process of automobile assembly line. Developing kay parts like engine, pump and valve with global famous manufacturers. Combined with long term multi-condition durable system certification, this machine has stable quality and high reliability.
Ultra Low Maintenance Costs
Filter replacement and maintenance at your fingertips. The easy access reduces maintenance costs.
Equipped with HPCR (High pressure common rail) engine and advanced positive flow electrical control hydraulic system. Through reasonable flow distribution and accurate power matching control, the machine has big digging force and low fuel consumption. Its fuel consumption is 10% lower than similar models.
